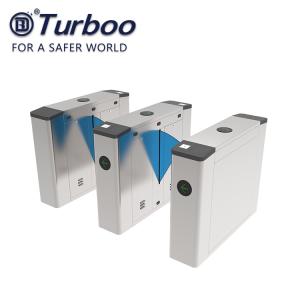

Pedestrian Flap Barrier Turnstile For Indoor And Outdoor Security Management

Brand Name : Turboo

Model Number : Y248

Certification : CE

Place of Origin : Guangdong

MOQ : 1 PC

Price : Negotiation

Payment Terms : L/C, T/T,

Supply Ability : 1000 units per month

Delivery Time : 7 days

Packaging Details : Wooden box/ Heavy carton package

Size : 1250x280x980mm

Material : 304/316 stainless steel

Input : 220V ,50Hz

Package : wooden box

Temperature : -25~+70℃

Transit speed : 35 persons/min

Reliability of the core : 3 million ,no fault

Time needed for opening : 0.2 seconds

Contact Now

Flap barrier pedestrian access gate for indoor and outdoor security management
Product Description

The beautiful Speed Gate Speed1 is the thinnest motorized barrier optical turnstile available. The Speed1's slim cabinets are only 120mm wide (about the width of your hand). The turnstile's rounded lines and clear materials enhance the look of any lobby or entrance area and provide excellent sight lines for attendants or guards in case of security events or emergencies.

The Speed1's compact floor footprint allows more lanes to fit in a smaller space. Center expansion cabinets have the same dimensions as end cabinets, allowing space saving multi-lane configurations. The Speed1 optical turnstile maintains the same cabinet dimensions even when providing ADA-compliant passage widths. Barrier panels may be ordered in three heights (900mm, 1200mm or 1800mm) to best match operational requirements.

OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked

MATERIALS

1.. Housing and arm: Made in stainless steel AISI 304 o AISI316.

2. PC flap and moulding machine core

Technical Data Y248
Dimension 1200x280x980mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 63kg
Input 12v dry contact

Pedestrian Flap Barrier Turnstile For Indoor And Outdoor Security Management

Pedestrian Flap Barrier Turnstile For Indoor And Outdoor Security ManagementPedestrian Flap Barrier Turnstile For Indoor And Outdoor Security Management
