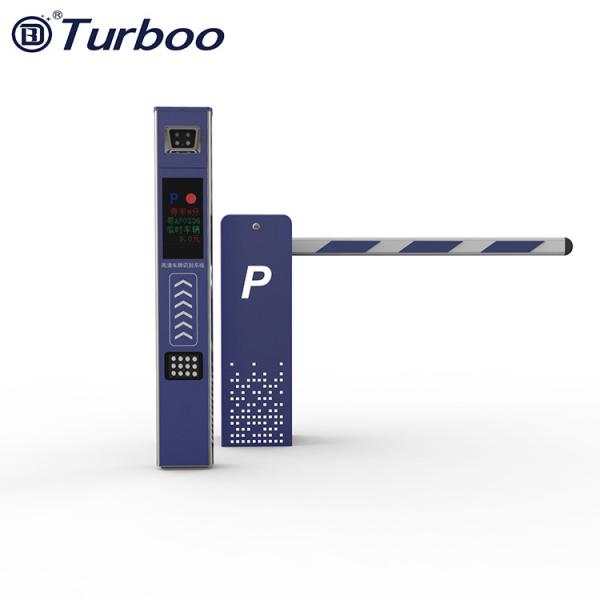

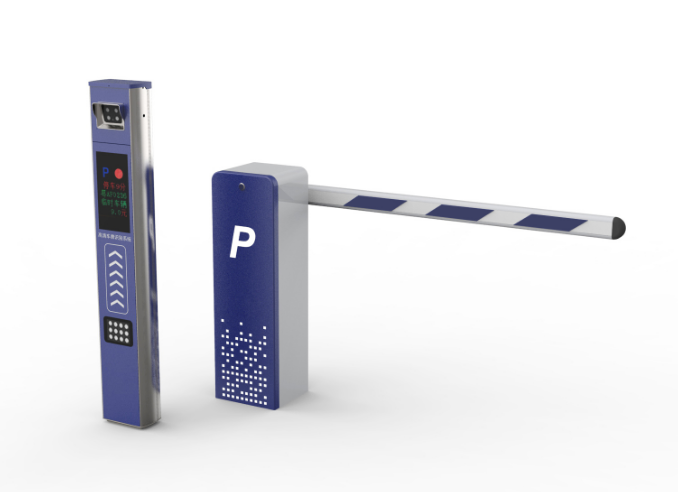

Boom Barrier Office Security Gates Tickets System Automatic Car Park 6M Barrier Gate
BOOM BARRIER FUNCTIONALCONFIGURATION: when the arm is down, it will auto reverse automatically when it encounters an obstacle. Protect vehicles and pedestrians from running accidents. The sensitivity sped of arm openning and closing can be adjusted according to site conditions
Description
CONTROLLER: Powerful integrated chip driver,fast processing speed,large memory,good control effect.Powerful highly automated and durable.Adoptlow-voltage 24V power supply,adapt to global voltage, safe and reliable. Independent research and development, patented products.
| Barrier Gate Model Number: | DZ901 |
| Housing Size: | 300*270*980mm |
| Bomm barrier boom length: | 3m to 6m |
| Net Weight: | 47kg |
| Barrier Cabinet Thickness: | 2.0mm |
| Material: | Cold rolling sheet with printing |
| Gate Arm Material: | Aluminum alloy profile |
| Driver: | DC Brushless |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
Boom Barrier Office Security GatesTurnstile Gate Features and Benefits
1. Offering dry contact signal for car parking system(COM,NC,NO)
2. Arm automaticlly locking when power off, then open the barrier gate by motor wheel
3. Auto-delay when closing(adjustable)
4. Auto-reverse when the boom meets obstruction.
5. Infrared photocells connector is available.
6. Loop detector connector is available.
7. Well-intergrated with car parking system equipment,with wire control(must be switch signal).
8. Connector for traffic light(AC220V,power less than 40W)
9. Run speed can adjust from 2.5sec to 8sec
10. Remote control to operate the barrier gate.
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
